AL-15A- Typically good for at least 12-20 aquarium air outlets at depths less than 24".

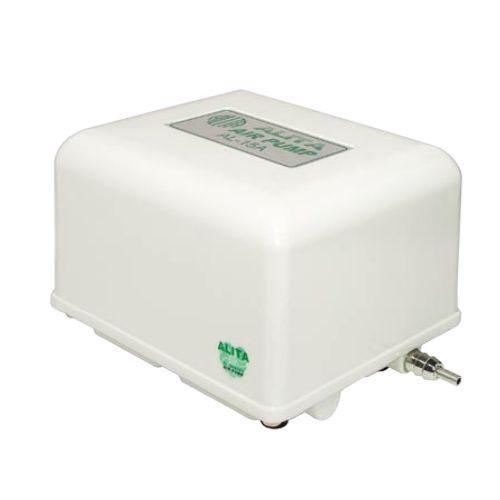

Alita AL-15A Linear Air Pump
The ALITA lineup of Linear Air Pumps are fantastic high capacity air pumps for Aquariums, Ponds, Septic Tanks, and where ever a Air Pump is needed. The Alita Linear air pumps represents a top of the line linear air compressor with a three year limited warranty. Alita Air Pumps are built to last with a very durable body and mechanics meaning years of reliable use.
Designed to deliver high volume of steady air flow at low-pressure ranges, ALITA Linear Air Pumps are of high efficiency, low energy consumption and perform with extremely low operating noise level.
With no sliding parts and oil-less components, the air pump requires no lubrication and provides the cleanest air available.
These pumps have Solid Construction for Indoor / Outdoor Operations.
Ultra Quiet with Low Pulsation.
3 years Manufacturer's Warranty.

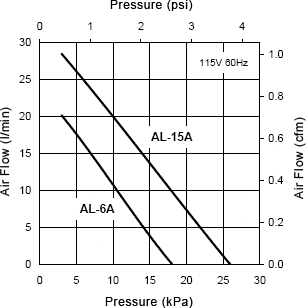

AL-15A Specification:
- Voltage: (V) AC 115 (AC 110/115/120 or AC 220/230/240)
- Rated Pressure: 10 kPa (1.4 psi)
- Rated Performance: 20 lpm (0.7 cfm)
- Outlets: 1/4", 3/8"
- Power Consumption: 16 Watts
- Sound Level: 29 dB
- Weight: 2.4 kg (5.3 lb)
Maximum Number of Outlets:
Will vary in each situation. Depth of the outlet plus the back pressure on the pump will vary, so your situation may produce different results. But a general rule of thumb is to get a pump that provides 1 liter of air per minute per outlet at 1 psi.
An open airline with allow more lines while an airstone will put more pressure on the pump. And box filters and sponges will create more pressure still. Also, clogged airstones and filters will also limit the performance of any air pump. When in doubt, go up a pump size. You can always bleed off any excess air.
General Guidelines:
AL-6A- Typically good for at least 6-10 aquarium air outlets at depths less than 24".
AL-15A- Typically good for at least 12-20 aquarium air outlets at depths less than 24".
AL-25M- Typically good for at least 20-30 aquarium air outlets at depths less than 24".
AL-35M- Typically good for at least 30-40 aquarium air outlets at depths less than 24".
AL-40- Typically good for at least 40-50 aquarium air outlets at depths less than 24".
AL-60- Typically good for at least 50-80 aquarium air outlets at depths less than 24".
AL-80- Typically good for at least 80-100 aquarium air outlets at depths less than 24".
ALITA standard linear air pumps conform to the European Community's Machinery Directive (CE) and UL certified in compliance to US and Canadian safety standards for household, commercial, and industrial air compressors and vacuum pumps.
|
RoHS Compliance
Alita Linear Air Pumps manufactured from 2006 onward are in compliant with the European Union directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS). The RoHS directive requires manufacturers to significantly reduce the use of lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) content in electronics and electrical products sold in the EU beginning in July 2006
|
